Semiconductor eMarker HUSB332D opens the 4-pin emarker era for USB Type-C cable

Recently, it is widely rumored that the interface of the iPhone 15 series will be replaced by a USB Type-C port, and the USB Type-C cable, the key accessory connecting it with the charger, will also usher in an explosive market opportunity. At the same time, with the official launch of USB Power Delivery 3.1 and USB4 V2.0 standards, it also means that USB Type-C cables are developing rapidly in the direction of multi-function and high-performance. The new generation of eMarker HUSB332D launched by Huinengtai Semiconductor is in line with USB Type-C 2.2 specification, USB PD3.1 and USB4 V2.0 standards, and has ultra-high performance, which is applicable to various USB Type-C cable applications and USB4 passive cables; It also supports 240 W, 80Gbps C to C cable design. At the same time, HUSB332D also has 1.6 mm ×  The 1.6 mm HFBP-4L ultra-small package opens the era of 4-pin eMarker.

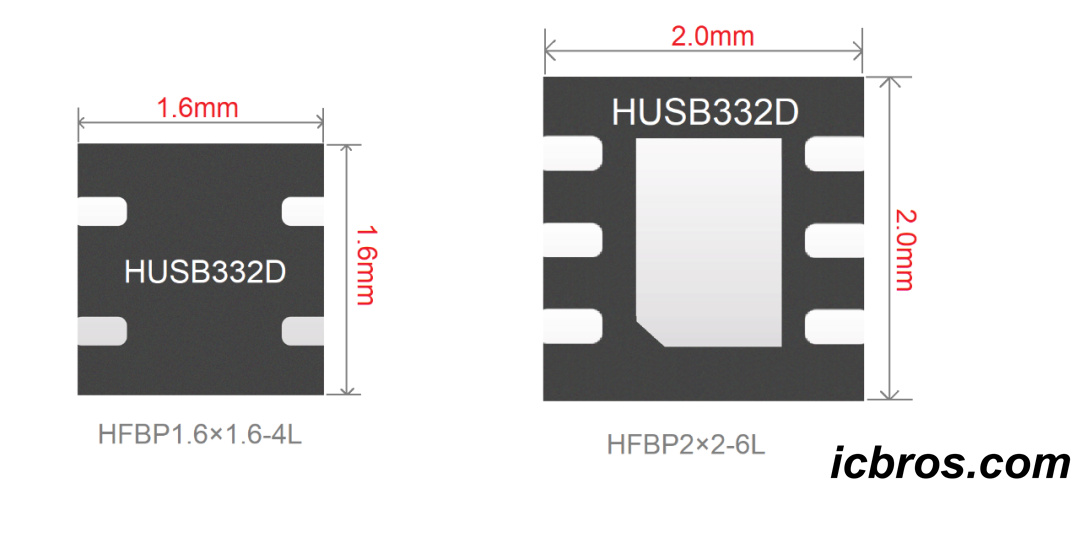

HUSB332D adopts HFBP1.6 × 1.6-4L and HFBP2 × 2-6L two packaging forms. The number of eMarker pins has dropped to 4 pins. As can be seen from the above figure, due to the small number of HUSB332D pins, its peripheral circuit wiring is extremely simple, which can greatly reduce the design difficulty of high-performance cables to help the product quickly launch into the market.
The HUSB332D package size launched by Huinengtai this time is 1.6 mm × 1.6 mm and 2 mm × 2 mm。 Use 1.6 mm × The 1.6 mm ultra-small HUSB332D is used for USB Type-C cable design. Its paddle card is more beautiful and can also improve the patch yield. In addition, HFBP2 × The HUSB332D in 2-6L package is compatible with some of Huinengtai's previous eMarker product models, which can quickly complete the upgrade iteration of cable products.
Minimal, extremely powerful
Conforms to USB Type-C 2.2 and USB PD3.1 V1.6 standards
Support SOP 'communication
Integrated transceiver (BMC PHY)
Support structured VDM version 1.0 and 2. x

High integration:

Integrated Ra resistor on both sides
VCONN diode integrated on both sides
HFBP1.6 × 1.6-4L、HFBP2 × 2-6L package
Support 3 times of programming
Compatible with third-party programming tools
Support 2.7V~5.75V operation on VCONN1 and VCONN2 pins
CC/VCONN1/VCONN2 pin withstand voltage 22V
Support Thunderbolt 3, Thunderbolt 4 and USB4 V2.0 80Gbps data communication
CC/VCONN1/VCONN2：HBM ±8 kV ESD
HUSB332D is powered by VCONN1 or VCONN2, which can determine its role as SOP. The built-in OTP can be programmed in the system through CC line. Its rated temperature range is - 40 ℃ to+85 ℃.
About Huinengtai Semiconductor
Shenzhen Huinengtai Semiconductor Technology Co., Ltd. is a company focusing on smart energy control technology, mainly for the field of smart fast charging and digital energy, providing high-performance digital-analog hybrid chip products. The company is headquartered in Qianhai, Shenzhen, and has R&D centers in Shanghai, Hangzhou, Zhejiang, and California, USA. Huinengtai's core R&D team is from top semiconductor companies at home and abroad, with strong R&D and innovation capabilities. The company has obtained a number of authorized patents, has independent intellectual property rights, and was rated as "high-tech enterprise" in 2020.
At present, Huinengtai has completed the overall product layout around the USB Type-C ecological chain, developed and mass-produced a number of products: multiple series of PD Source protocol chips at the power supply end, high-performance PD Sink (PD decoy chip) at the receiving end, Type-C port controller (CC Logic) at the cable end, and USB eMarker (electronic label chip) at the cable end. Since its establishment, Huinengtai has launched a number of industry-leading products and has been widely welcomed by the market. The company shipped 200 million chips, and its benchmark customers include Lenovo, Xiaomi, Samsung, HP, Belkin and Nubia. At the same time, Huinengtai is also committed to improving energy efficiency and researching energy control technology. With its own technology research and development advantages, Huinengtai develops digital power control chips, high-voltage drive chips, power conversion chips and modules for industrial applications such as ICT (communication server), data centers, photovoltaic inverters, energy storage, etc.
